Dual In-Line Packages

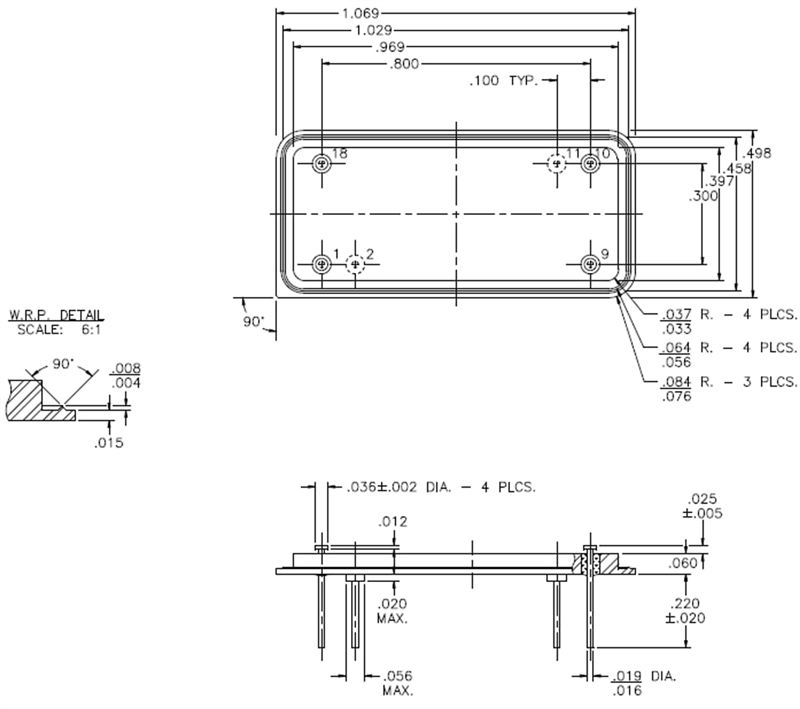

RR-4981070-E

DIP (Dual In-line Package).498 X 1.070

Product Specifications

General Parameters:
Post Ht.: .020+/-.005
Posts: 4
Lead Lgth.: .220+/-.020
Leads: 4
Insulated Pin Position: 1, 9, 10 & 18 Thru
Grd. Pin Position: N/A
S.O. Ht. +/-.005: N/A
No Of S.O.: N/A
Header Mat'l.: C.R.S
