Dual In-Line Packages

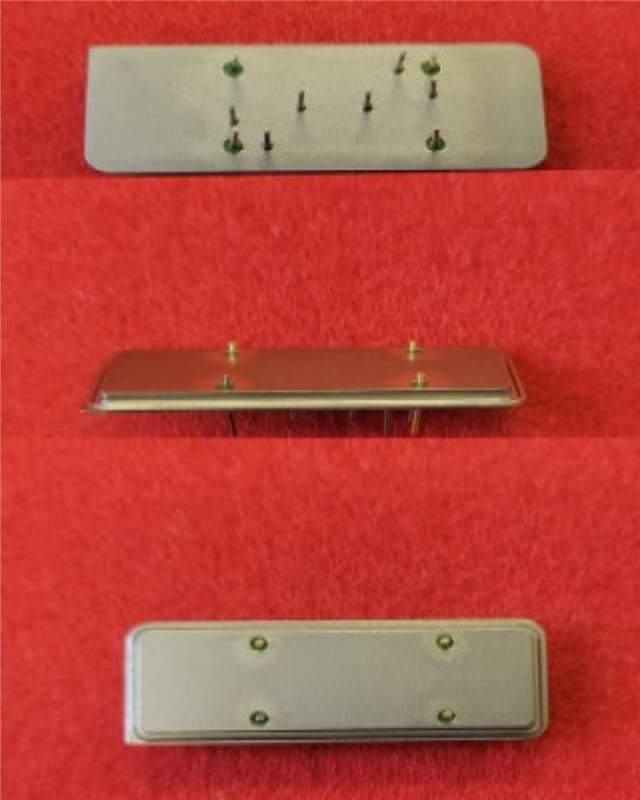

RR-4931370-C

DIP (Dual In-line Package).498 X 1.370

Product Details

General Parameters

  • Post Ht. : Nail Head.025+/-.005
  • Posts : .037 Dia. x.010 Thk. 8
  • Lead Lgth. : .130+/-.010
  • Leads : 18
  • Insulated Pin Position : 2, 3, 10, 11, 14, 15, 22 & 23 Thru
  • Grd. Pin Position : 1, 4, 8, 9, 12, 13, 16, 17, 21 & 24 Lead only
  • S.O. Ht. +/-.005 : N/A
  • No Of S.O. : N/A
  • Header Mat'l. : C.R.S
