HC-52

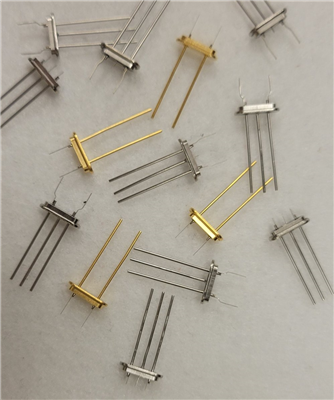

RR-45-TF-WSM019F B.185

Resistance Weld HC-50 Welded Slot Mounts or Slot Mount

Product Specifications

General Parameters:
Post/Lead Dia. & Lead Lgth.: .019 (2 Plcs.) .520+/-.020
Grd. Pin: Fork Only
Mount Information:
Center Lead Type & Ht.: Tack Fork Grd. .035 SH
Contact Area Dim.: .005 Wd. x .075 Lg.
Mount To Mount: .185+/-.015
Mount Ht.: .126+/-.015
Thk. x Wdth.: .003 x .030
Temp. & Mat'l.: C770, Full Hard C770, Full Hard
