HC-52

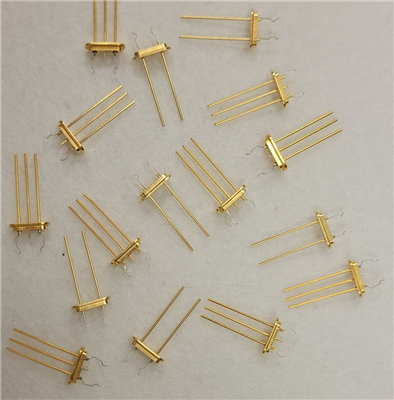

RR-45-TF-HM09-6 B.197

Resistance Weld HC-52 Hook Mounts or C-Clip

Product Details

General Parameters

  • Post/Lead Dia. & Lead Lgth. : .019 (2 Plcs.) .520+/-.020
  • Grd. Pin : Fork Only

Mount Information

  • Center Lead Type & Ht. : Tack Fork Grd. .035 SH
  • Contact Area Dim. : .005 Slot & .020 R.
  • Mount To Mount : .197+/-.015
  • Mount Ht. : .135+/-.015
  • Thk. x Wdth. : .003 x .030
  • Temp. & Mat'l. : C770, Full Hard C770, Full Hard
