HC-52

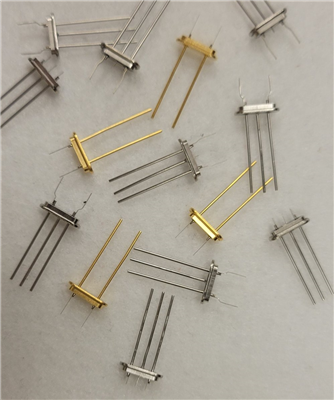

RR-45-DB002A B.196

Resistance Weld HC-50 Welded Slot Mounts or Slot Mount

Product Specifications

General Parameters:
Post/Lead Dia. & Lead Lgth.: .019 (2 Plcs.) .520+/-.020
Grd. Pin: No
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .010 Wd. x .095 Lg.
Mount To Mount: .196+/-.015
Mount Ht.: .135+/-.010
Thk. x Wdth.: .004 x .032
Temp. & Mat'l.: C770, 1/2 Hard
