HC-52

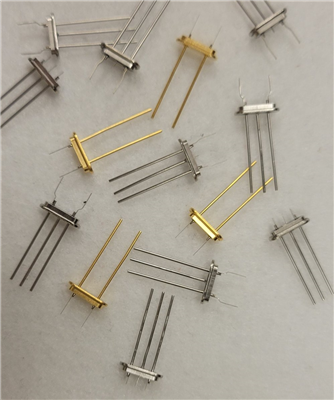

RR-45-CGFTF4-TF005 IS

Resistance Weld HC-50 Welded Slot Mounts or Slot Mount

Product Specifications

General Parameters:
Post/Lead Dia. & Lead Lgth.: .019 (3 Plcs.) .520+/-.020
Grd. Pin: Yes
Mount Information:
Center Lead Type & Ht.: Center Grd. Flush Tack Fork .055 SH
Contact Area Dim.: .010 Wd. x .015 Dp.
Mount To Mount: Straight Up
Mount Ht.: .060+/-.005
Thk. x Wdth.: .003 x .030
Temp. & Mat'l.: C770, Full Hard Ni. Silver 1/2 Hd.
