HC-52

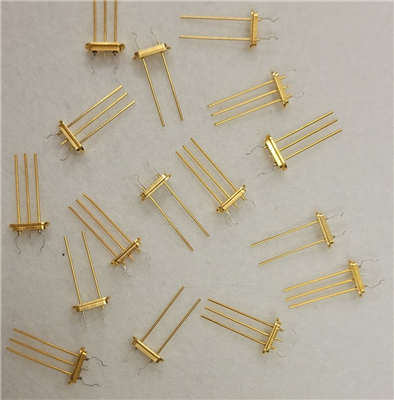

RR-45-CGFTF-HM09-1 B.216

Resistance Weld HC-52 Hook Mounts or C-Clip

Product Specifications

General Parameters:
Post/Lead Dia. & Lead Lgth.: .019 (3 Plcs.) .520+/-.020
Grd. Pin: Yes
Mount Information:
Center Lead Type & Ht.: Center Grd. Flush Tack Fork .035 SH
Contact Area Dim.: .005 Slot & .020 R.
Mount To Mount: .197+/-.015
Mount Ht.: .135+/-.015
Thk. x Wdth.: .003 x .030
Temp. & Mat'l.: C770, Full Hard C770, Full Hard
