HC-52

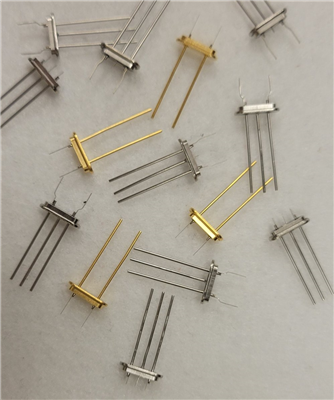

RR-45-CGF-D-WSM019A B.210

Resistance Weld HC-50 Welded Slot Mounts or Slot Mount

Product Details

General Parameters

  • Post/Lead Dia. & Lead Lgth. : .019 (3 Plcs.) .520+/-.020
  • Grd. Pin : Yes

Mount Information

  • Center Lead Type & Ht. : Center Grd. Flush
  • Contact Area Dim. : .005 Wd. x .075 Lg.
  • Mount To Mount : .210+/-.015
  • Mount Ht. : .141+/-.015
  • Thk. x Wdth. : .003 x .030
  • Temp. & Mat'l. : C770, Full Hard
