HC-53

RR-141-NDP-31

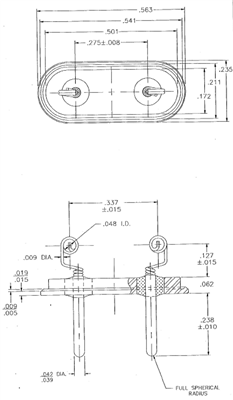

Resistance Weld HC-53 PLUG IN Spring Mounts

Product Specifications

General Parameters:
Post/Lead Dia. & Lead Lgth.: .040 (2 Plcs.) .238+/-.010
Grd. Pin: No
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .048 I.D. Wedge Open
Mount To Mount: .345 REF.
Mount Ht.: .146+/-.015
Thk. x Wdth.: .005 Dia.
Temp. & Mat'l.: Double Tinned Music Wire
