Discretes

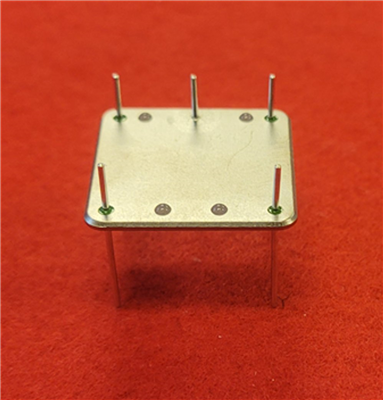

DC-950-P

Solder Seal .950 x .950 Discrete Package (Pin Grid. Pattern .750x.750)

Product Specifications

General Parameters:
Post Ht. & Post Dia.: .390+/-.010 (.030)
Posts: 5
Lead Lgth. & Lead Dia.: .250+/-.010 (.030)
Leads: 5
Insulated Pin Position: 1, 7, 13 & 19 Thru
Grd. Pin Position: 4 Thru
S.O. Ht. +/-.005 & Grid. Pattern: Inline Grid 2, 6, 15 & 17 .025+/-.005
S.O.: 4
Header Mat l.: C.R.S.
