Discretes

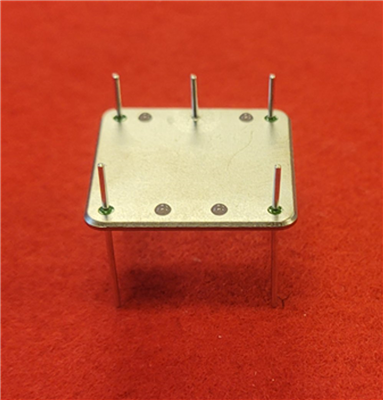

DC-950-M

Solder Seal .950 x .950 Discrete Package (Pin Grid. Pattern .750x.750)

Product Details

General Parameters

  • Post Ht. & Post Dia. : .550+/-.010 (.030)
  • Posts : 5
  • Lead Lgth. & Lead Dia. : .250+/-.010 (.030)
  • Leads : 5
  • Insulated Pin Position : 1, 7, 13 & 19 Thru
  • Grd. Pin Position : 4 Thru
  • S.O. Ht. +/-.005 & Grid. Pattern : Inline Grid 2, 6, 15 & 17 .025+/-.005
  • S.O. : 4
  • Header Mat l. : C.R.S.
