Discretes

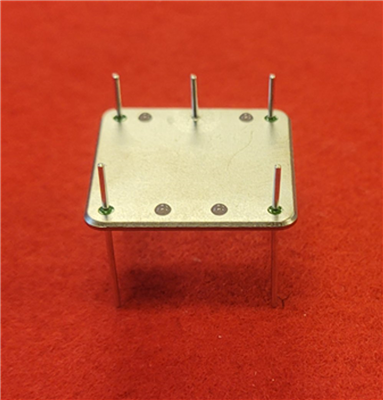

DC-950-E

Solder Seal .950 x .950 Discrete Package (Pin Grid. Pattern .750x.750)

Product Details

General Parameters

  • Post Ht. & Post Dia. : .485+/-.010 (.018) Flush .095+/-.005 (.018)
  • Posts : 2 2 5
  • Lead Lgth. & Lead Dia. : .250+/-.010 (.018)
  • Leads : 9
  • Insulated Pin Position : 13 & 19 Thru 2 & 6 Leads Only 1, 4, 7, 15 & 17 Thru
  • Grd. Pin Position : 4 Thru
  • S.O. Ht. +/-.005 & Grid. Pattern : N/A
  • S.O. : N/A
  • Header Mat l. : C.R.S.
