Discretes

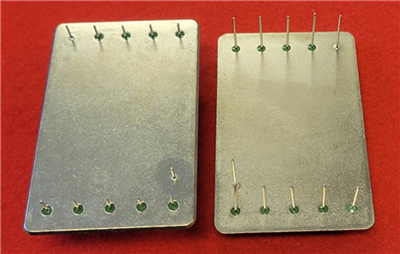

DC-1866-2895-A

Solder Seal 1.866 x 2.895 Discrete Package (Pin Grid. Pattern 1.500x2.500)

Product Specifications

General Parameters:
Post Ht. & Post Dia.: .330+/-.015 (.030)
Posts: 19
Lead Lgth. & Lead Dia.: Flush .200+/-.010 (.030)
Leads: 10 9
Insulated Pin Position: 1, 4, 5, 6, 7 & 9 Thru
Grd. Pin Position: (Qty. 10) Post Only 2, 3 & 8 Thru
S.O. Ht. +/-.005 & Grid. Pattern: 1.500 X 2.500 .037+/-.007
S.O.: 4
Header Mat l.: C.R.S.
