Discretes

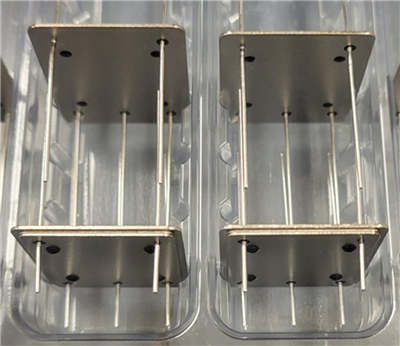

DC-1003-1350-E

Solder Seal 1.003 x 1.350 Discrete Package (Pin Grid. Pattern .700x1.000)

Product Details

General Parameters

  • Post Ht. & Post Dia. : .200+/-.010 (.030)
  • Posts : 5
  • Lead Lgth. & Lead Dia. : .187+/-.010 (.030)
  • Leads : 5
  • Insulated Pin Position : 2, 3, 4 & 5 Thru
  • Grd. Pin Position : 1 Thru
  • S.O. Ht. +/-.005 & Grid. Pattern : .600 x .700 .026+/-.006
  • S.O. : 4
  • Header Mat l. : C.R.S.
