Discretes

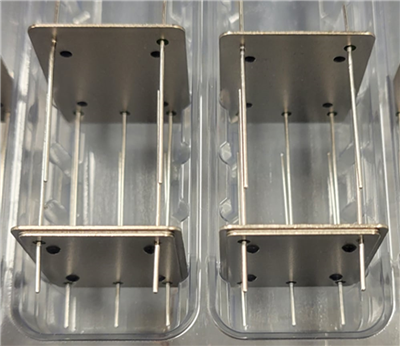

DC-1003-1350-B

Solder Seal 1.003 x 1.350 Discrete Package (Pin Grid. Pattern .700x1.000)

Product Specifications

General Parameters:
Post Ht. & Post Dia.: .266+/-.010 (.030)
Posts: 5
Lead Lgth. & Lead Dia.: .244+/-.010 (.030)
Leads: 5
Insulated Pin Position: 2, 3, 4 & 5 Thru
Grd. Pin Position: 1 Thru
S.O. Ht. +/-.005 & Grid. Pattern: .600 x .700 .034+/-.005
S.O.: 4
Header Mat l.: C.R.S.
