HC-45 (CW-45)

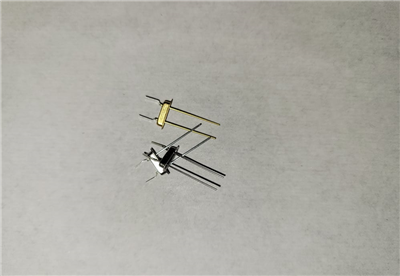

CW-45-015A-TF005I/S BENT 20 DEGREES

Cold Weld HC-45 Welded Slot Mounts or Slot Mounts

Product Details

General Parameters

  • Post/Lead Dia. & Lead Lgth. : .015 (2 Plcs.) .520+/-.020
  • Grd. Pin : No

Mount Information

  • Center Lead Type & Ht. : N/A
  • Contact Area Dim. : .010 Wd. x .015 Dp.
  • Mount To Mount : Inside Post 20 Degrees Inward
  • Mount Ht. : Tack Fork .060+/-.005
  • Thk. x Wdth. : .003 x .030
  • Temp. & Mat l. : Nickel Silver 1/2 Hard
