HC-45 (CW-45)

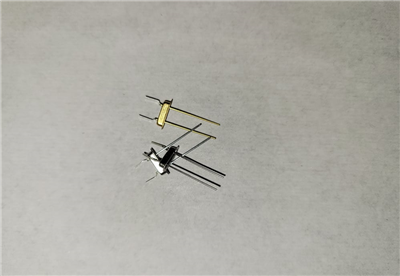

CW-45-015A-FSM019F B.185

Cold Weld HC-45 Welded Slot Mounts or Slot Mounts

Product Specifications

General Parameters:
Post/Lead Dia. & Lead Lgth.: .015 (2 Plcs.) .520+/-.020
Grd. Pin: No
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .005 Wd. x .075 Lg.
Mount To Mount: Funnel Top .185+/-.015
Mount Ht.: .126+/-.010
Thk. x Wdth.: .003 x .030
Temp. & Mat l.: C770 Full Hard
