HC-43 (CW-180 Series)

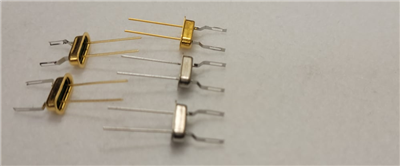

CW-185-WSMGLA B.300

Cold Weld HC-43 Welded Slot Mounts or Slot Mounts

Product Specifications

General Parameters:
Post/Lead Dia. & Lead Lgth.: .019 (2 Plcs.) .520+/-.020
Grd. Pin: No
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .022 Wd. x .110 Lg.
Mount To Mount: .300+/-.015
Mount Ht.: .215+/-.010
Thk. x Wdth.: .005 x .046
Temp. & Mat l.: S.S. 301 Spring Hard
