HC-43 (CW-180 Series)

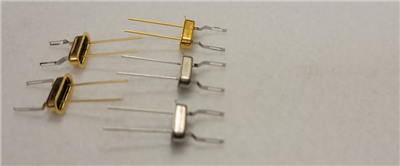

CW-185-3205A B.325

Cold Weld HC-43 Welded Slot Mounts or Slot Mounts

Product Specifications

General Parameters:
Post/Lead Dia. & Lead Lgth.: .019 (2 Plcs.) .520+/-.020
Grd. Pin: No
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .022 Wd. x .122 Lg.
Mount To Mount: .325+/-.015
Mount Ht.: .202+/-.015
Thk. x Wdth.: .005 x .050
Temp. & Mat l.: S.S. 301 Spring Hard
