HC-43 (CW-180 Series)

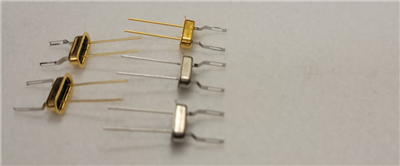

CW-183-CFG-A-WSM006C B.300

Cold Weld HC-43 Welded Slot Mounts or Slot Mounts

Product Details

General Parameters

  • Post/Lead Dia. & Lead Lgth. : .019 (2 Plcs.) .520+/-.020
  • Grd. Pin : Yes

Mount Information

  • Center Lead Type & Ht. : Center Fork Grd. .037 Seat
  • Contact Area Dim. : .013 Wd. x .120 Lg.
  • Mount To Mount : .300+/-.015
  • Mount Ht. : .193 REF.
  • Thk. x Wdth. : .005 x .045
  • Temp. & Mat l. : C770 Full Hard
