HC-43 (CW-180 Series)

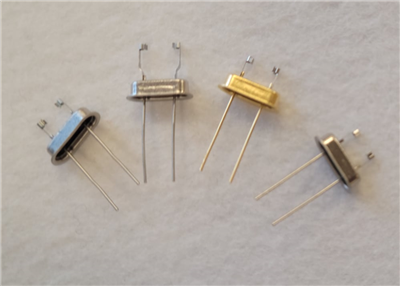

CW-183-CFG-A-17A (SS) B.300

Cold Weld HC-43 Tab Mounts or Flag Clip

Product Details

General Parameters

  • Post/Lead Dia. & Lead Lgth. : .019 (3 Plcs.) .620+/-.020
  • Grd. Pin : No

Mount Information

  • Center Lead Type & Ht. : Grd. .037 Seat
  • Contact Area Dim. : .035 Thk. x .045 Wd. x .035 Tall
  • Mount To Mount : .300+/-.015
  • Mount Ht. : .185+/-.015
  • Thk. x Wdth. : .003 x .020/.040
  • Temp. & Mat l. : S.S. 301 Spring Hard
