HC-46 (CW-140 Series)

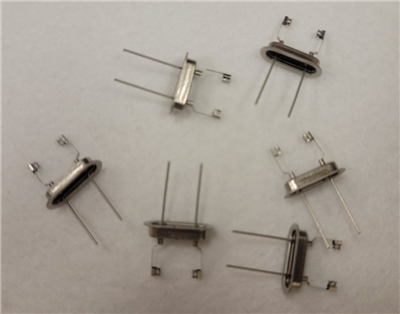

CW-142-BWC-6MH B.400

Cold Weld HC-46 Wire Leads Tab Mounts or Flag Clip

Product Details

General Parameters

  • Post/Lead Dia. : .040 / .018
  • Grd. Pin : No
  • Lead Lgth. (+/- Tol.) : .520+/-.020

Mount Information

  • Center Lead Type & Ht. : N/A
  • Contact Area Dim. : .075 Thk. x .058 Wd. x .062 Tall
  • Mount To Mount : .400+/-.015
  • Mount Ht. : .307+/-.015
  • Thk. x Wdth. : .003 x .040
  • Temp. & Mat'l. : S.S. 301, Spring Hard
