HC-46 (CW-140 Series)

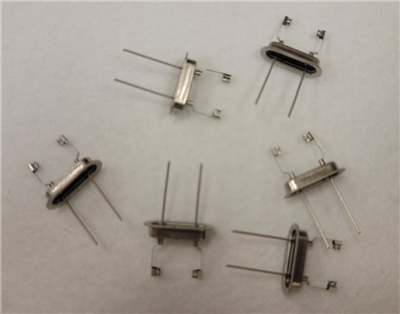

CW-142-BW-030C-3150 B.445 RUGG

Cold Weld HC-46 Wire Leads Tab Mounts or Flag Clip

Product Specifications

General Parameters:
Post/Lead Dia.: .030 / .018
Grd. Pin: No
Lead Lgth. (+/- Tol.): .515+/-.015
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .075 Thk. x .058 Wd. x .062 Tall
Mount To Mount: Rugg Inside .445+/-.015
Mount Ht.: .290+/-.015 .290+/-.015
Thk. x Wdth.: .005 x .040 .005 x .040
Temp. & Mat'l.: S.S., S.S. 301, Spring Hard
