HC-46 (CW-140 Series)

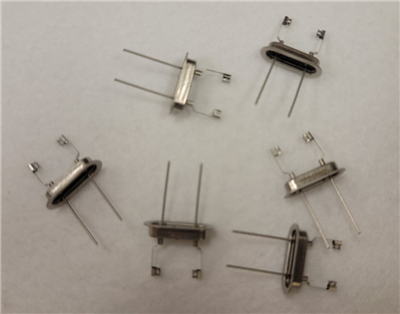

CW-142-030M-6MH B.445

Cold Weld HC-46 Wire Leads Tab Mounts or Flag Clip

Product Specifications

General Parameters:
Post/Lead Dia.: .030
Grd. Pin: No
Lead Lgth. (+/- Tol.): .235+/-.010
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .075 Thk. x .058 Wd. x .062 Tall
Mount To Mount: .445+/-.015
Mount Ht.: .295+/-.015
Thk. x Wdth.: .003 x .040
Temp. & Mat'l.: S.S. 301, Spring Hard
