HC-46 (CW-140 Series)

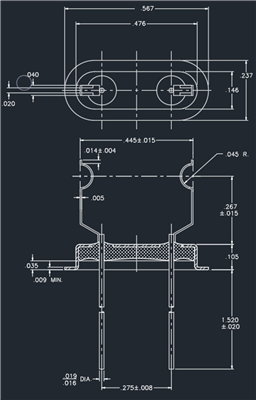

CW-142-017M-HMBD ST B.445

Cold Weld HC-46 Wire Leads Hook Mounts or C-Clip

Product Details

General Parameters

  • Post/Lead Dia. : .018
  • Grd. Pin : No
  • Lead Lgth. (+/- Tol.) : .455+/-.015

Mount Information

  • Center Lead Type & Ht. : N/A
  • Contact Area Dim. : .015 Slot & .045 R.
  • Mount To Mount : .220+/-.015
  • Mount Ht. : .445+/-.015
  • Thk. x Wdth. : .005 x .040
  • Temp. & Mat'l. : S.S. 301, Spring Hard
