HC-46 (CW-140 Series)

CW-142-017M-2207

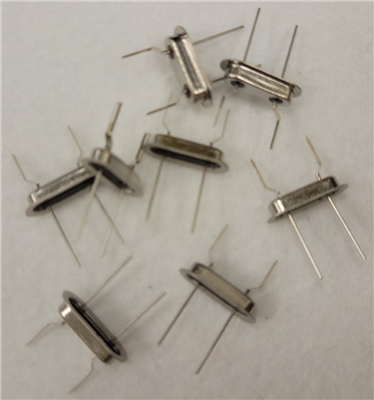

Cold Weld HC-46 Wire Leads Weld Slot Mounts or Slot Mount

Product Details

General Parameters

  • Post/Lead Dia. : .018
  • Grd. Pin : No
  • Lead Lgth. (+/- Tol.) : .455+/-.015

Mount Information

  • Center Lead Type & Ht. : N/A
  • Contact Area Dim. : .018 Wd. x .120 Lg.
  • Mount To Mount : .400+/-.012
  • Mount Ht. : .240+/-.010
  • Thk. x Wdth. : .003 x .050
  • Temp. & Mat'l. : C752 or C770, 1/2 Hard
