HC-46 (CW-140 Series)

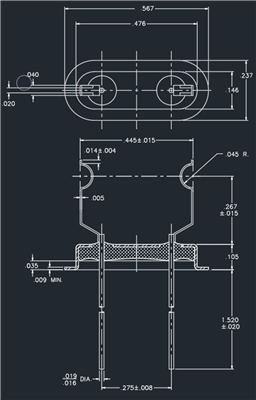

CW-142-017C-HMCD ST B.445

Cold Weld HC-46 Wire Leads Hook Mounts or C-Clip

Product Specifications

General Parameters:
Post/Lead Dia.: .018
Grd. Pin: No
Lead Lgth. (+/- Tol.): .520+/-.020
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .020 Slot & .045 R.
Mount To Mount: .220+/-.015
Mount Ht.: .445+/-.015
Thk. x Wdth.: .005 x .040
Temp. & Mat'l.: S.S., S.S. 301, Spring Hard
