HC-47 (CW-109 Series)

CW-109-F-WSM043B

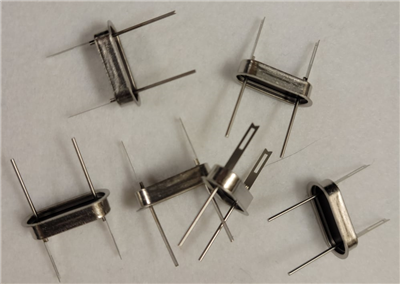

Cold Weld HC-47 Welded Slot Mounts or Slot Mounts

Product Specifications

General Parameters:
Post Dia. & Post Ht. (+/- Tol.): .030 (2 Plcs.) .070+/-.010
Grd. Pin: No
Lead Dia. & Lead Lgth. (+/- Tol.): .030 (2 Plcs.) .520+/-.020
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .030 Wd. x .190 Lg.
Mount To Mount: .526+/-.015
Mount Ht.: Top Tab Dim. .324+/-.015
Thk. x Wdth.: .005 x .076
Temp. & Mat'l.: C770 1/2 Hard
