HC-47 (CW-109 Series)

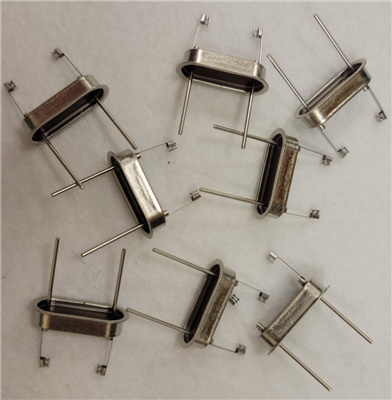

CW-109-F-3155 B.590 RUGG BACK

Cold Weld HC-47 Tab Mounts or Flag Clip

Product Specifications

General Parameters:
Post Dia. & Post Ht. (+/- Tol.): .030 (2 Plcs.) .070+/-.010
Grd. Pin: No
Lead Dia. & Lead Lgth. (+/- Tol.): .030 (2 Plcs.) .520+/-.020
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .025 Gap .075 Thk. x .058 Wd. x .062 Tall
Mount To Mount: Rugg Inside .616+/-.015 .596 Ref.
Mount Ht.: .351+/-.015 .351+/-.015
Thk. x Wdth.: .005 x .040 .005 x .040
Temp. & Mat'l.: S.S., S.S. 301, Spring Hard
