HC-47 (CW-109 Series)

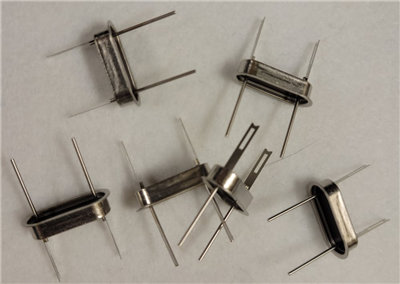

CW-109-B-WSM023 W/IS

Cold Weld HC-47 Welded Slot Mounts or Slot Mounts

Product Details

General Parameters

  • Post Dia. & Post Ht. (+/- Tol.) : .030 (2 Plcs.) .100+/-.010
  • Grd. Pin : No
  • Lead Dia. & Lead Lgth. (+/- Tol.) : .030 (2 Plcs.) 1.520+/-.020

Mount Information

  • Center Lead Type & Ht. : N/A
  • Contact Area Dim. : .115 Wd. x .330 Lg. (Oval Slot)
  • Mount To Mount : .456+/-.015
  • Mount Ht. : Top Tab Dim. .324+/-.015
  • Thk. x Wdth. : .070 x .120 .010 x .180
  • Temp. & Mat'l. : S.S. 1/2 Hard
