HC-47 (CW-109 Series)

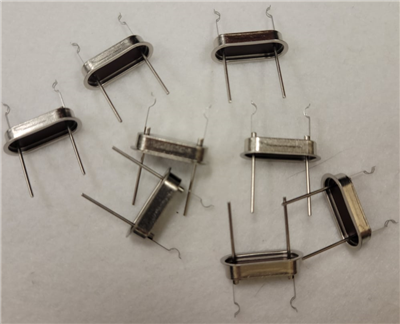

CW-109-A-HMCE

Cold Weld HC-47 Hook Mounts or C-Clip

Product Details

General Parameters

  • Post Dia. & Post Ht. (+/- Tol.) : .030 (2 Plcs.) .070+/-.010
  • Grd. Pin : No
  • Lead Dia. & Lead Lgth. (+/- Tol.) : .030 (2 Plcs.) 1.520+/-.020

Mount Information

  • Center Lead Type & Ht. : N/A
  • Contact Area Dim. : .015 Slot & .045 R. Ref.
  • Mount To Mount : .545+/-.015
  • Mount Ht. : .305+/-.015
  • Thk. x Wdth. : .005 x .040
  • Temp. & Mat'l. : S.S. 301, Spring Hard
