HC-36 (CW-105)

CW-105-NP-A-HMCE

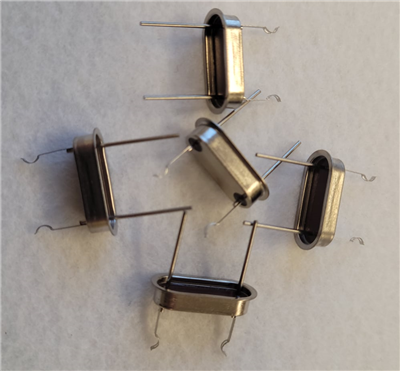

Cold Weld HC-36 Plug In Hook Mounts or C-Clip

Product Details

General Parameters

  • Post Ht. (+/- Tol.) : .070+/-.008
  • Grd. Pin : No
  • Lead Dia. & Lead Lgth. (+/- Tol.) : .050 (2 Plcs.) .236+/-.011

Mount Information

  • Center Lead Type & Ht. : N/A
  • Contact Area Dim. : .020 Slot & .045 R. Ref.
  • Mount To Mount : .545+/-.015
  • Mount Ht. : .330+/-.015
  • Wdth. x Lgth. Thk. x Wdth. : .005 x .040
  • Temp. & Mat l. : S.S. 301, Spring Hard
