HC-36 (CW-105)

CW-105-NP-A-HMBD

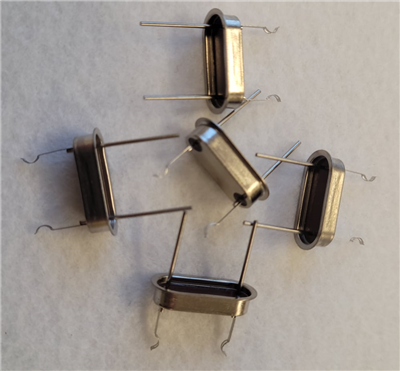

Cold Weld HC-36 Plug In Hook Mounts or C-Clip

Product Specifications

General Parameters:
Post Ht. (+/- Tol.): .070+/-.008
Grd. Pin: No
Lead Dia. & Lead Lgth. (+/- Tol.): .050 (2 Plcs.) .236+/-.010
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .015 Slot & .045 R. Ref.
Mount To Mount: .545+/-.015
Mount Ht.: .305+/-.015
Wdth. x Lgth. Thk. x Wdth.: .005 x .040
Temp. & Mat l.: S.S. 301, Spring Hard
