HC-36 (CW-105)

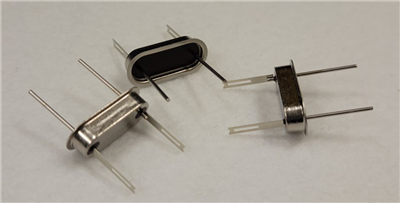

CW-105-B-WSM023 W/IS

Cold Weld HC-36 Plug In Welded Slot Mounts or Slot Mount

Product Specifications

General Parameters:
Post Ht. (+/- Tol.): .090+/-.008
Grd. Pin: No
Lead Dia. & Lead Lgth. (+/- Tol.): .050 (2 Plcs.) .236+/-.012
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .115 Wd. x .330 Lg. (Oval Slot)
Mount To Mount: .436 Ref.
Mount Ht.: Top Tab Dim. .324+/-.015
Wdth. x Lgth. Thk. x Wdth.: .070 x .120 .010 x .180
Temp. & Mat l.: S.S. 1/2 Hard
