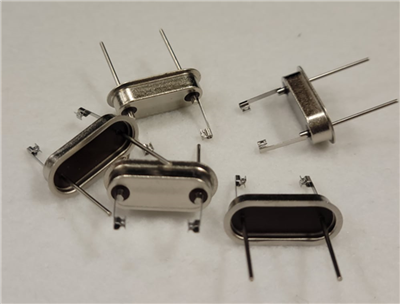

HC-36 (CW-105)

CW-105-B-5AH-RS002E

Cold Weld HC-36 Plug In Tab Mounts or Flag Clip

Product Specifications

General Parameters:
Post Ht. (+/- Tol.): .090+/-.008
Grd. Pin: No
Lead Dia. & Lead Lgth. (+/- Tol.): .050 (2 Plcs.) .236+/-.011
Mount Information:
Center Lead Type & Ht.: N/A
Contact Area Dim.: .075 Thk. x .058 Wd. x .062 Tall
Mount To Mount: Rugg Inside .548 Ref.
Mount Ht.: .290+/-.015 .355+/-.015
Wdth. x Lgth. Thk. x Wdth.: .005 x .040 .005 x .040
Temp. & Mat l.: S.S., S.S. 301, Spring Hard
