HC-36 (CW-105)

CW-105-B-5AH

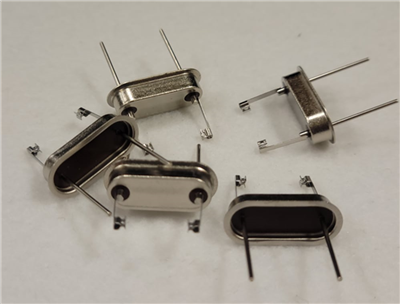

Cold Weld HC-36 Plug In Tab Mounts or Flag Clip

Product Details

General Parameters

  • Post Ht. (+/- Tol.) : .090+/-.008
  • Grd. Pin : No
  • Lead Dia. & Lead Lgth. (+/- Tol.) : .236+/-.012

Mount Information

  • Center Lead Type & Ht. : N/A
  • Contact Area Dim. : .075 Thk. x .058 Wd. x .062 Tall
  • Mount To Mount : .548 Ref.
  • Mount Ht. : .355+/-.015
  • Wdth. x Lgth. Thk. x Wdth. : .005 x .040
  • Temp. & Mat l. : S.S. 301, Spring Hard
